HOBO RX3000


Remote Monitoring Station Data Logger
สถานีตรวจวัดสภาพอากาศ และบันทึกค่า


HOBOware software and USB cable are required for initial setup of WiFi units or Ethernet units with Static IP addresses. HOBOlink is a web-enabled software platform designed for the RX3000, learn more.

OVERVIEW

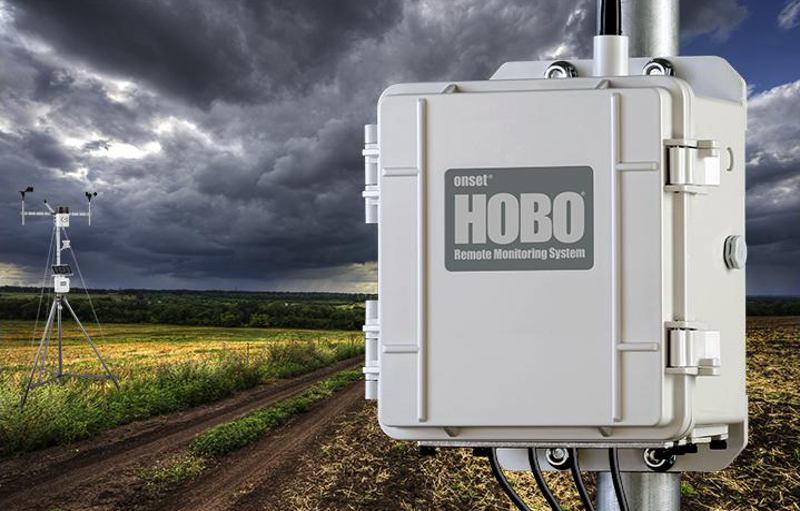

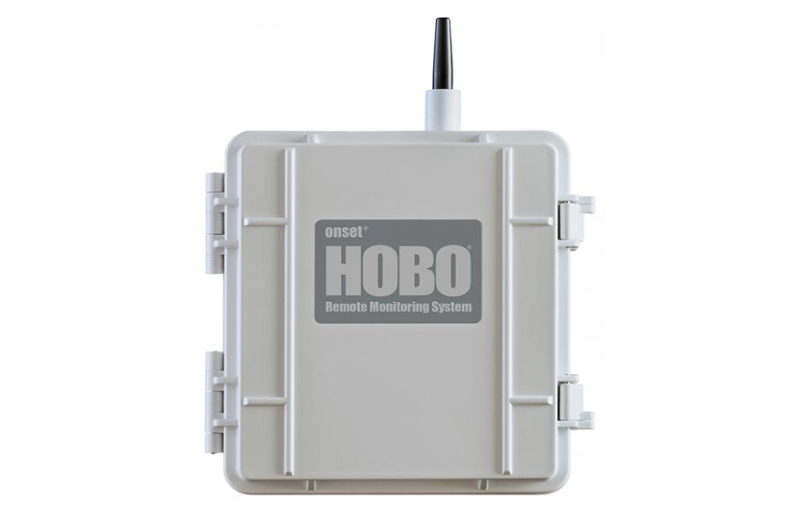

The HOBO RX3000 is Onset’s next-generation remote data logging station that provides instant access to site-specific environmental data anywhere, anytime via the internet. The new station combines the flexibility and sensor quality of more expensive systems, an onboard LCD display, and the convenience of plug-and-play operation. The RX3000 has three configurable systems, that can be configured below, that consist of the following part numbers: RX3001-00-01, RX3002-00-01, and RX3003-00-01.



Highlighted Features

  • Flexible support for a broad range of sensors
  • LCD display for easy field deployment
  • Cloud-based data access through HOBOlink
    • Get 24/7 web access to your data via web browser
    • Verify RX3000 system status remotely
    • Set up and manage alarm notifications over the web
    • Schedule automated delivery of data
  • Plug-and-play operation
  • Alarm notifications via text, email
  • Rugged double-weatherproof enclosure
  • Cellular, Wifi and Ethernet Option are available
  • Configure & check on your RX3000 monitoring station from your mobile devices

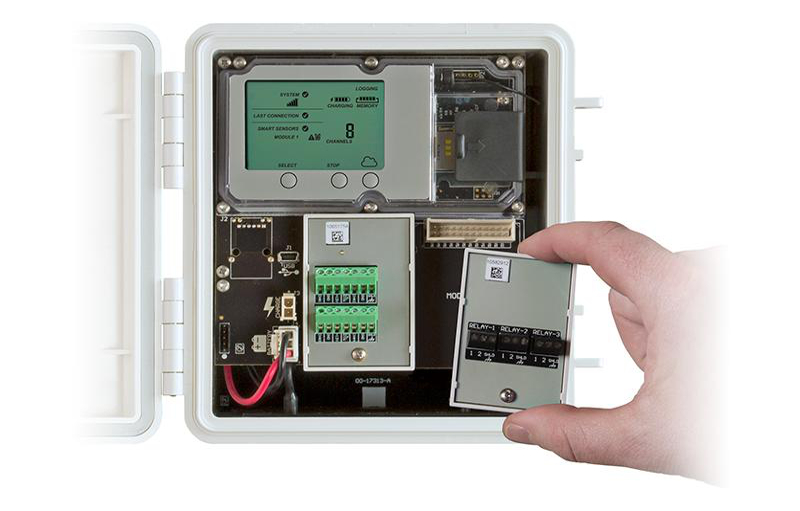

  • Optional Analog Input and Relay Modules
  • Optional third-party sensor can be purchased for Remote Water Level Monitoring



Specifications


Inputs
External Contact Input : Electronic solid state switch closure or logic driven digital signals to 24 V
Maximum Pulse Frequency : 120 Hz
Maximum State, Event, Runtime Frequency : 1 Hz
Bits : 4–32 bits depending on pulse rate and logging interval
Maximum Pulses Per Interval : 7,863,960 (using maximum logging rate)
Driven Logic Signal : Input Low: ≤ 0.4 V; Input High: 3 to 24 V
Absolute Maximum Rating : Maximum Voltage: 25 V DC
Minimum Voltage: -0.3 V DC
Solid State Switch Closure : Input Low: < 10 KΩ; Input High: > 500 KΩ
Internal Weak Pull-Up : 100 KΩ
Input Impedance : Solid state switch closure: 100 KΩ pull up; Driven signal: 4.5 KΩ
Minimum Pulse Width : Contact closure duration: 500 uS; Driven logic signal: 100 uS
Lockout Time : 0 to 1 second in 100 ms steps
Edge Detection : Falling edge, Schmitt Trigger buffer
Preferred Switch State : Normally open or Logic "1" state
Logging
Resolution : Pulse: 1 pulse, Runtime: 1 second, State and Event: 1 State or Event
Logging Rate : 1 second to 18 hours, 12 minutes, 15 seconds
Time Accuracy : ± 1 minute per month at 25°C (77°F) (see Plot A on next page)
Battery Type : Two AA alkaline or lithium batteries
Battery Life 1 year, typical with logging intervals greater than 1 minute and normally open contacts
Memory
Memory : UX120-017: 520,192 measurements (assumes 8-bit)///UX120-017M: 4,124,672 measurements (assumes 8-bit)
Download Type : USB 2.0 interface
Download Time : 30 seconds for UX120-017, 1.5 minutes for UX120-017M
Physical
Operating Range : Logging: -40° to 70°C (-40° to 158°F); 0 to 95% RH (non-condensing) Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
Weight : 149 g (5.26 oz)
Size : 11.4 x 6.3 x 3.3 cm (4.5 x 2.5 x 1.3 inches)
Environmental Rating : IP50
: The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
